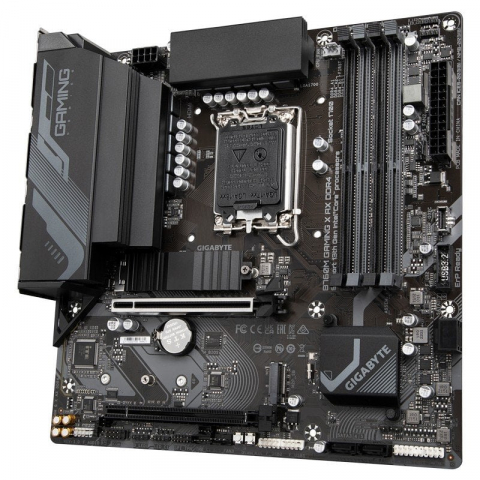

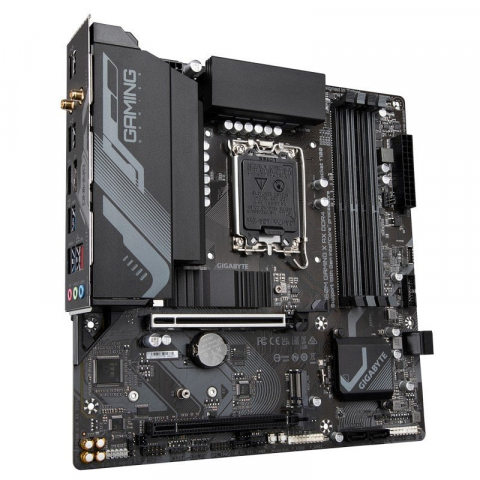

Placa base gigabyte b760m gaming x ax ddr4 1700 micro atx - 4 x ddr4 - 4 x sata - 1 x dp - 1 x hdmi - 3 x usb 3.2 - 5 x usb 2.0

El rendimiento sin restricciones de las placas base GIGABYTE está garantizado por un diseño térmico innovador y optimizado para garantizar la mejor estabilidad de la CPU, el chipset y la SSD y las bajas temperaturas bajo aplicaciones de
carga completa y rendimiento de juegos.
Características:

Intel Socket LGA 1700: compatible con procesadores de la serie 13.ª y 12.ª generación
Rendimiento incomparable: solución VRM digital híbrida de 8+1+1 fases
Dual Channel DDR4: 4*DIMMs Compatibilidad con módulo de memoria XMP
Almacenamiento de próxima generación: 2 conectores PCIe 4.0 x4 M.2
Diseño térmico avanzado y protección térmica M.2: para garantizar la estabilidad de energía VRM y el rendimiento SSD M.2
EZ-Latch: Ranura PCIe 4.0x16 con diseño de liberación rápida
Redes rápidas: LAN de 2,5 GbE e Intel Wi-Fi 6E 802.11ax
Conectividad extendida: USB-C frontal de 10 Gb/s, DP, HDMI
Smart Fan 6: cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
Q-Flash Plus: actualice el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

Especificaciones:

Procesador
LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel B760 Express Chipset
Memoria
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/
3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráfica Integrada
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Módulo de comunicaciones inalámbricas
AMD Wi-Fi 6E RZ608 (MT7921K)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Zócalos de Expansión
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Interfaz de almacenamiento
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Conectores Internos E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Panel E/S Trasero
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
Controlador E/S
iTE I/O Controller Chip
Monitorización Hardware
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Otras Características
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
LAN bandwidth management software
Sistema Operativo
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Formato
Micro ATX Form Factor, 24.4cm x 24.4cm
